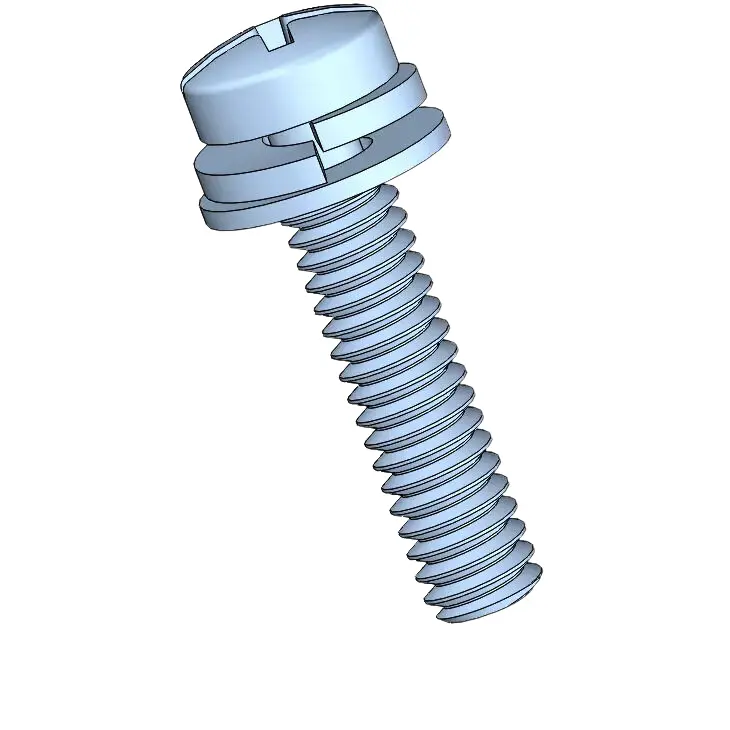

M2 x 9mm Pan Head Phillips Slot SEMS Screws with Spring and Flat Washer Steel Blue Zinc Plated
- Part No. EDPCM209Z
- Thread M2
- Length 9
- Head Pan Head
- Drive Combination Phillips-Slotted
- Material Blue Zinc Plated Steel
- Ship Date 2024-12-13
- MOQ 10K Price 0.023
- MOQ 50K Price 0.0200
Head Diameter: 3.1-3.5 mm
Drive Size: PH No.1
Weight: 0.3120 g
Rohs: Compliance
Head Height: 1.2-1.4 mm
Gauge: Compliance

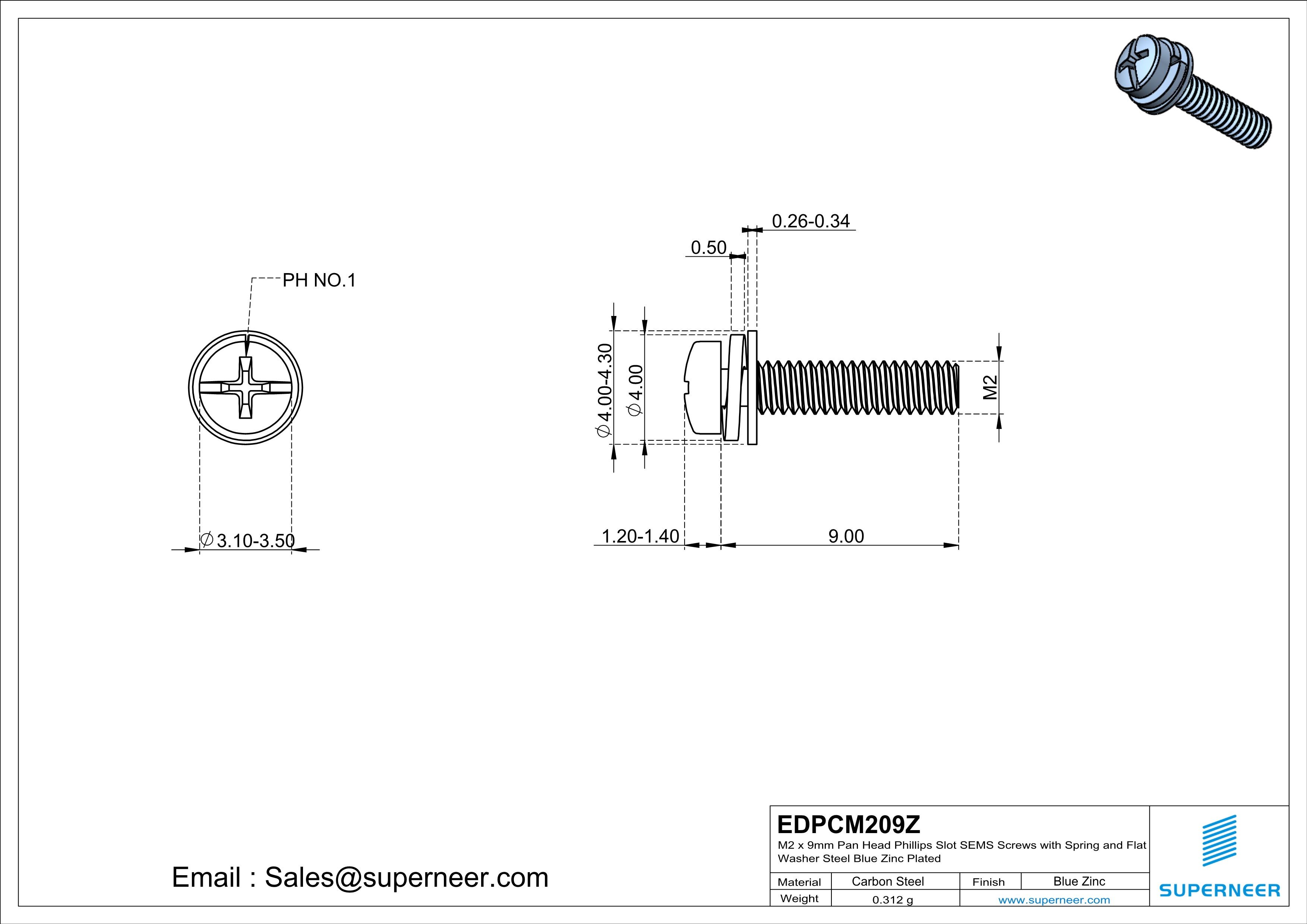

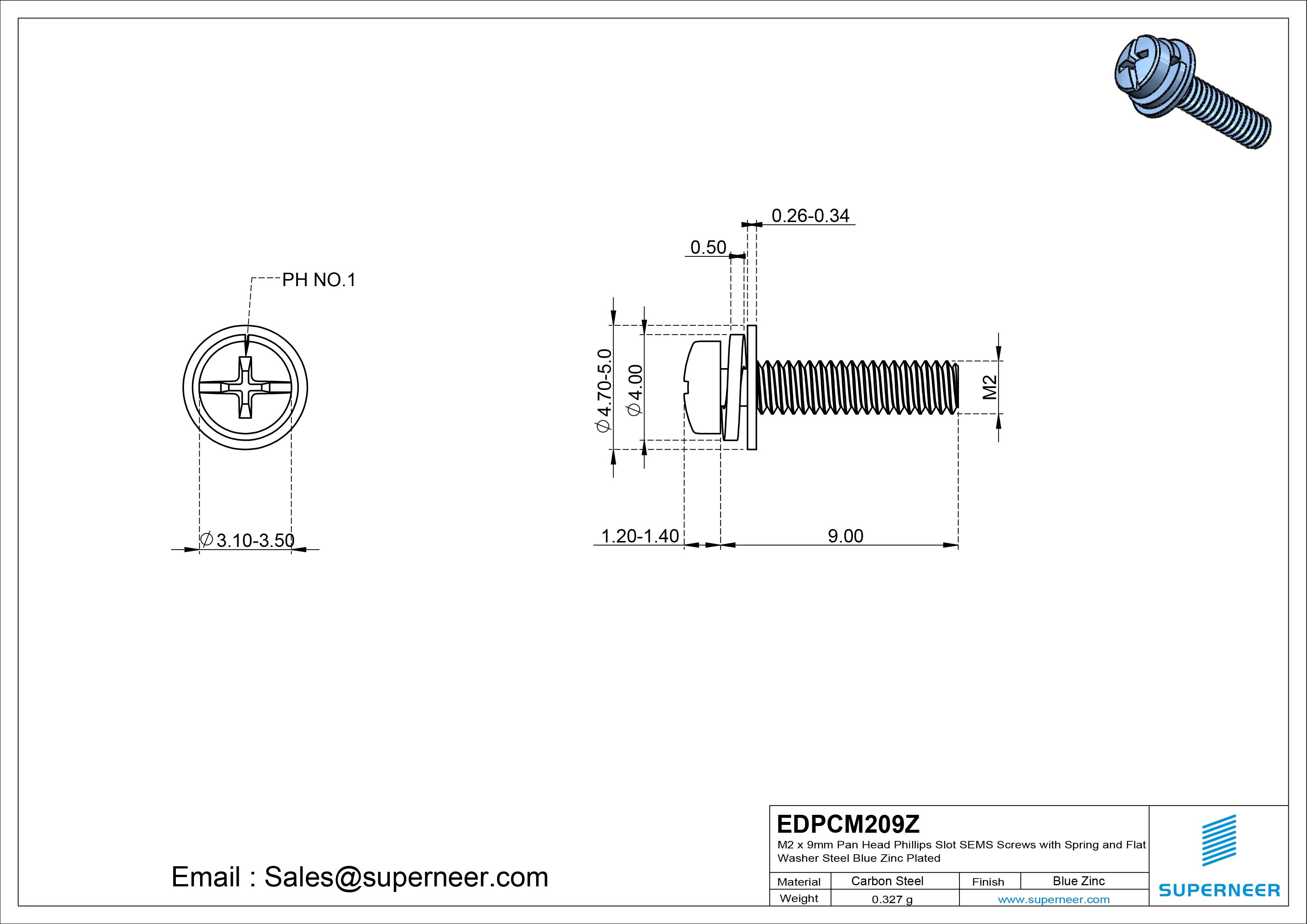

Item Drawing
M2 x 9mm Pan Head Phillips Slot SEMS Screws with Spring and Flat Washer Steel Blue Zinc Plated
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Combination Phillips-Slotted drive, M2 Thread and 9 mm Length .
Material is best choosen Blue Zinc Plated Steel, Finsh is Rohs Blue Zinc which has good function of anti-corrosion .
If you need this screw, don't hesitate, please add it to your cart and buy it, we will assure the quality and manufacture it and ship it.
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer ,
you can send your bank slip to us via order process or send it to our email:sales@superneer.com.
when payment made, We will soon make production and update process for you via email.
Superneer are doing screws for thirteen years, we supply thousands of screws on our website.
Each order will be made shippment on time.
Payment & Trasportation 5-10 days
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
How to Order
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing.
3. Parts ready, ship to customer.
if parts can't meet the drawing required demesion,payment will be returned to customer, we have the quality garantee!
or customer can send specific drawing to our email sales@superneer.com for production. [24h respond]
